How to build a backend

This page follows a project from an approved architecture through specification, implementation and merge. It is the long-form walkthrough; the other pages cover individual features in depth.

The three workflow steps

Every project runs the same three steps, in order:

Step	Produces	Runs
Architecture	The system design and its overview diagram	Once per project
Specification	A spec set and a service diagram per service	Once per service
Implementation	Source, tests and a PR per service	Once per service

Architecture runs once. Specification and implementation fan out across the services the change actually touches — not necessarily every service in the design. A first session that builds a whole system touches all of them; a later Feature session that adds one capability may touch two.

Workflow panel showing Architecture, Specification and Implementation steps with their status — The workflow panel. Each step shows its own status, and the service badges below show per-service progress.

Service badge statuses

Each service in the workflow carries a badge. The badge is the fastest way to tell whether a service is working, waiting on you, or waiting on credits.

Badge	Meaning	What to do
Active	The agent is working on this service right now	Nothing — watch the live activity
Queued	The run is ready but cannot start because your available balance is negative	Add credits, or let automatic top-up cover it
Awaiting your review	The run is paused on a plan and will not continue until you act	Open the service thread and approve or steer the plan
Completed	The run finished and its pull request is in the change set	Review the diff and approve the pull request

Queued is worth understanding, because it is the one status that is not about the agent. A run is queued when your available balance is negative — which happens when the holds from runs already in flight exceed what you have left. It is not a free-tier limit and it is not a concurrency limit: any run can be queued, on any plan, if the balance has gone negative.

Two things prevent it:

Automatic top-up, configured in billing, which buys credits when the balance drops below a threshold
Adding credits manually before starting a large batch of runs

Queued runs resume on their own once the balance is positive again. Nothing is lost and nothing needs restarting.

Specification

For each service, the agent writes a complete specification set:

docs/architecture.md — component boundaries, data flow, failure modes
docs/openapi_spec.yaml — the HTTP contract
docs/user_stories.md — testable acceptance criteria
docs/engineering_guide.md — the conventions the implementation must follow
docs/decisions/ — architecture decision records with the reasoning
diagrams/ — a diagram of the service’s internals, as .drawio and .svg

The architecture step produces one overview diagram of the whole system. The specification step produces a diagram per service, showing that service’s components and how they fit together. They answer different questions: the overview shows how services relate, the service diagram shows what is inside one.

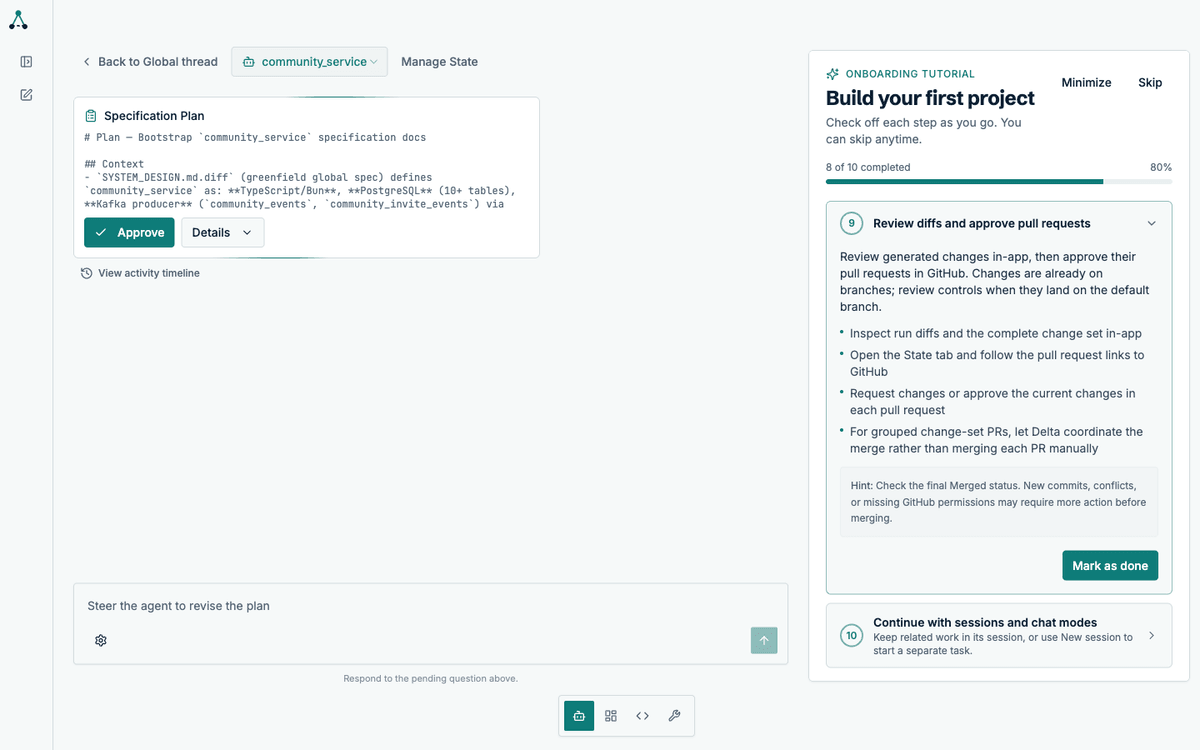

Specification plan approval card for a single service, listing the documents to be produced — A specification plan for one service. Each service gets its own plan and its own thread.

Implementation

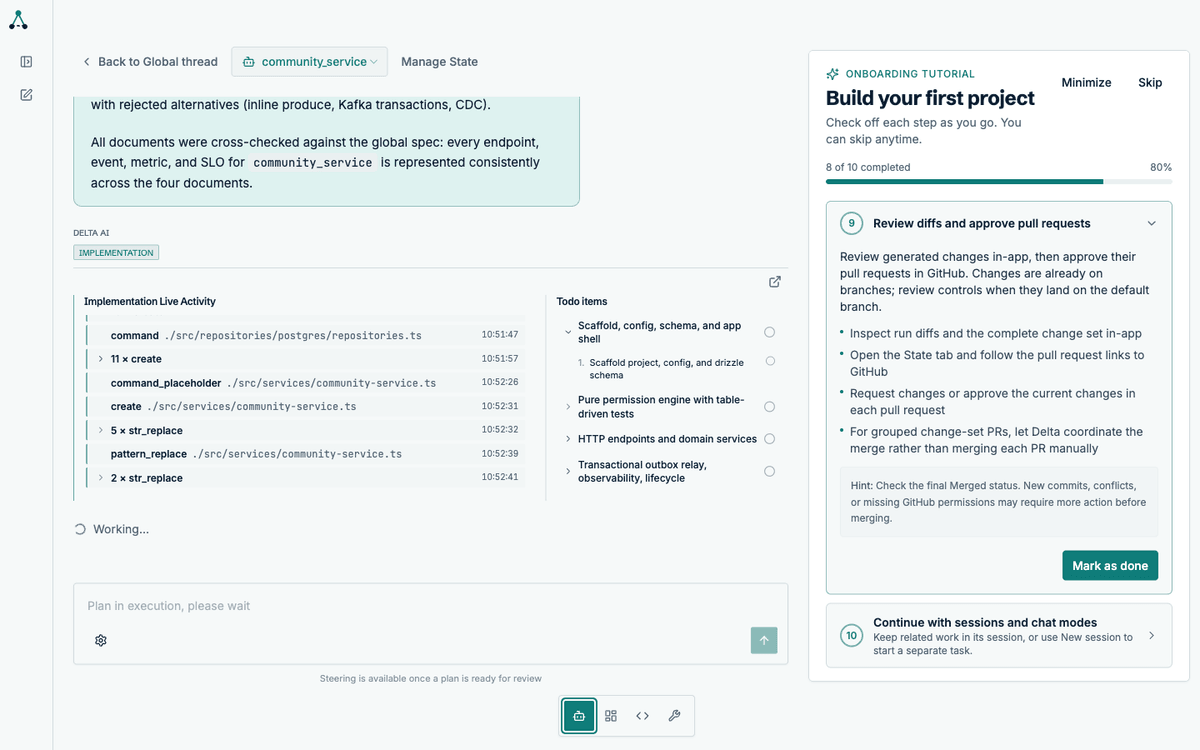

Implementation turns the specification into working code. The agent works inside the service directory, writes source and tests, and validates as it goes.

Progress is published as a todo list so you can see which phase the agent is in and what it has finished.

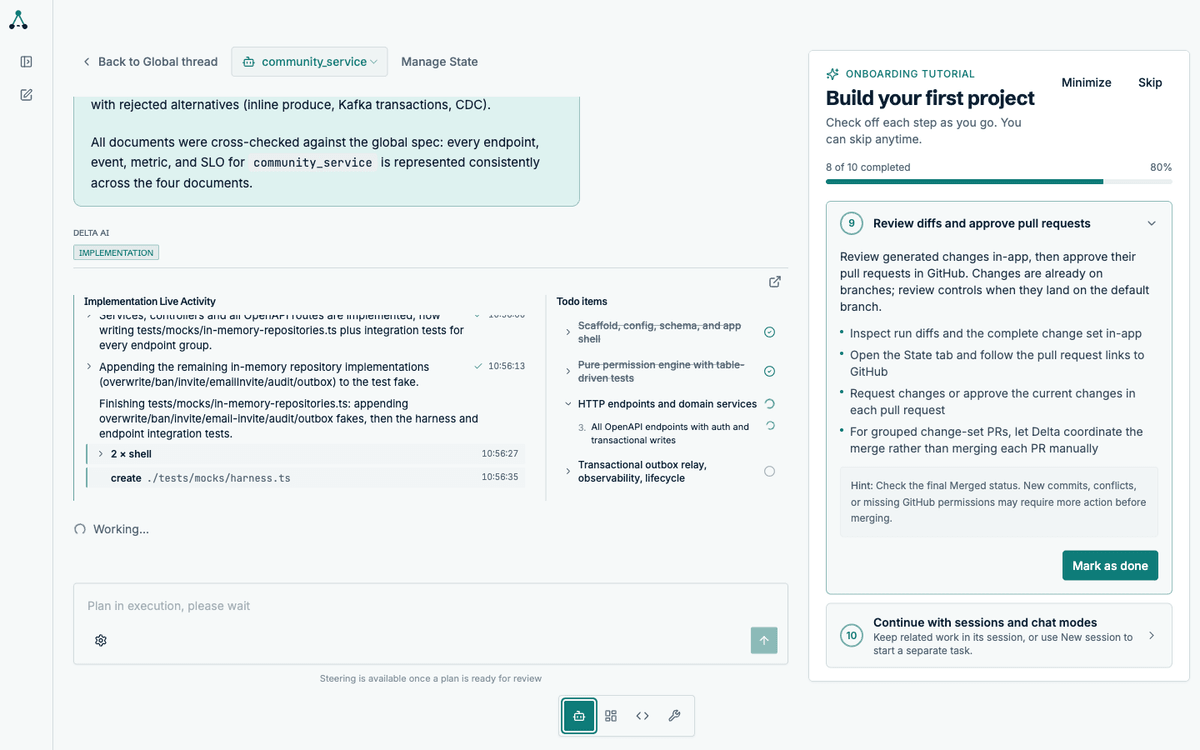

Todo list showing completed and in-progress implementation phases — The todo list during implementation. Items are marked done only when their acceptance criteria are supported by evidence.

What the agent validates

Before a run can succeed, the agent must satisfy its own completion contract:

Every todo is marked done, with evidence
The test suite passes
Type checking passes
Linting passes
The diff contains no unintended changes

A run that cannot meet these does not silently succeed. It either self-corrects or reports the blocker.

Reviewing the result

Each service lands as a pull request in your GitHub organisation. The Code tab shows the diff in-app, per service.

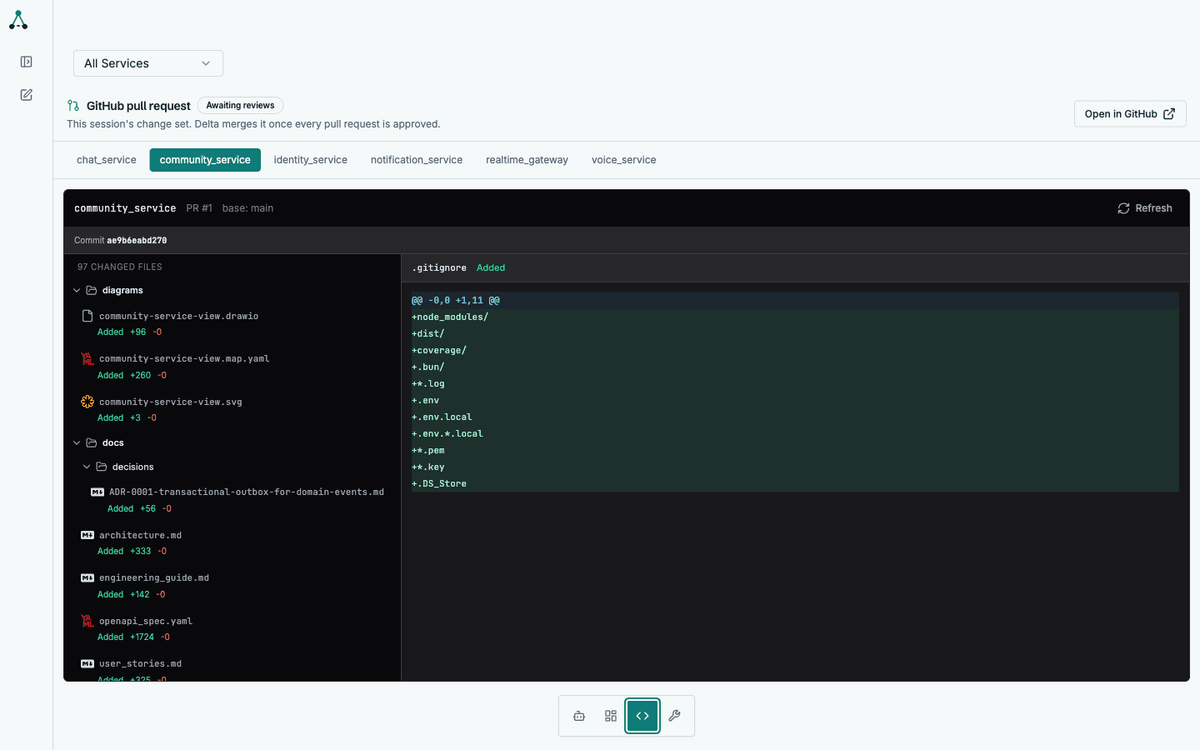

Code review tab showing a file tree and unified diff for one service pull request — The Code tab. Pick a service, then read its diff file by file without leaving the app.

Approving the pull requests is what triggers the merge. See Review and approve.

What you deploy

The output is standard container images. Delta AI does not deploy anything for you, and does not assume a particular orchestrator. Each service exposes /healthz and /readyz and shuts down gracefully, which is the contract any modern platform can use.
